Dynamic fixing solutions.

Dynamic loads are also called non-static loads, and are involved inparticular in mechanical engineering, and more and more often inconstruction. There are assumed to be a very large number of loadchanges (switching between loading and unloading, changes in theloading direction or changes in the load height) over the service lifeof the component. These load changes occur at anchorages withplugs, for instance on robots, cranes, and elevators. However, theyalso occur on trains passing by noise protection walls or trucks inroad tunnels, which generate dynamic loads on installations due tothe constant interchange between pressure and suction caused byairflow.

More information

Selection matrix for dynamic anchors.

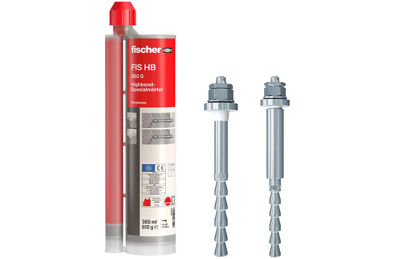

Highbond-Anchor dynamic FHB dyn

  • Load level: 100%
  • Assortment / Sizes: M12 - M24
  • Lateral force optimized version M12 + M16
  • Anchor plate thickness 8 - 150 mm
  • Minimum concrete component thickness 130 mm
  • Curing time at 20°C (Mortar / Capsule) 35 min. / -
  • Steel fibre concrete: M12 + M16 (static)

More information

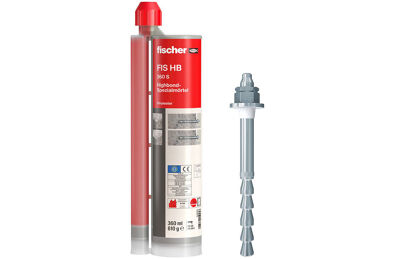

Dynamic-anchor FDA

  • Load level: 80%
  • Assortment / Sizes: M12 + M16
  • Lateral force optimized version: -
  • Anchor plate thickness: 12 - 80 mm
  • Minimum concrete component thickness: 130 mm
  • Curing time at 20°C (Mortar / Capsule): 35 min. / -
  • Steel fibre concrete: M12 + M16 (static)

More information

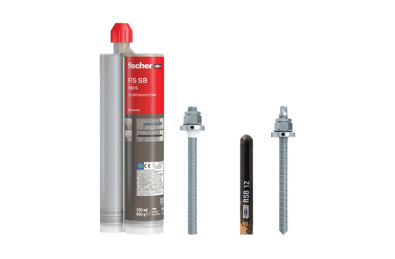

Injection mortar FIS SB

  • Load level: ca. 10 - 50%
  • Assortment / Sizes: M12 - M24
  • Lateral force optimized version: -
  • Anchor plate thickness 6 - 200 mm
  • Minimum concrete component thickness 100 mm
  • Curing time at 20°C (Mortar / Capsule) 30 min. / 20 min.
  • Necessary system components

Applications

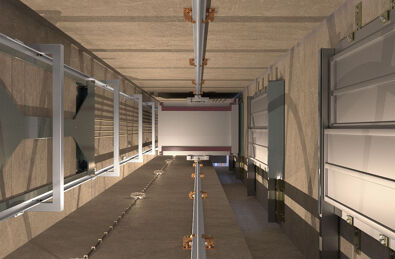

Elevator assemblies

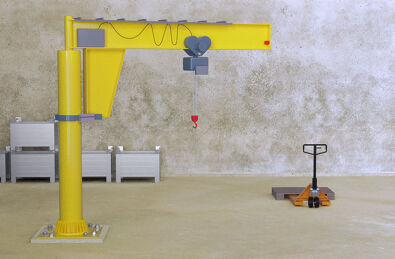

Crane fixing

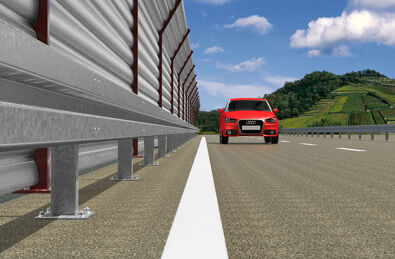

Noise protection walls

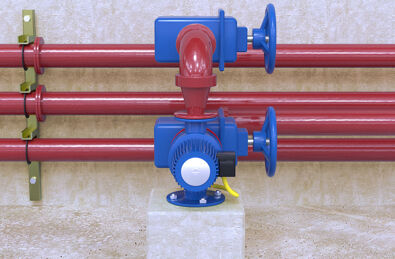

Pumps

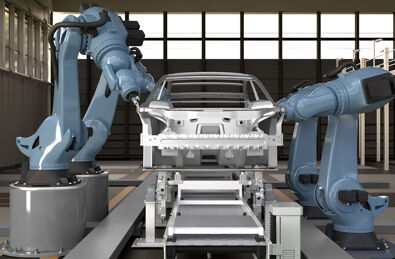

Robot fixing

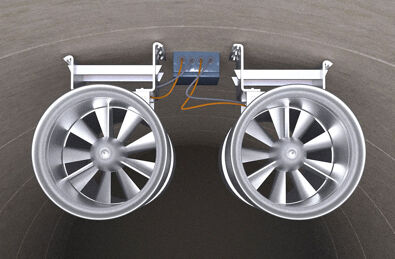

Ceiling fans
